- Size: 15
- Place of Origin: China
- Brand Name: METO
- Model Number: MT-100
- Weight: 500.000 kg
- :
- :

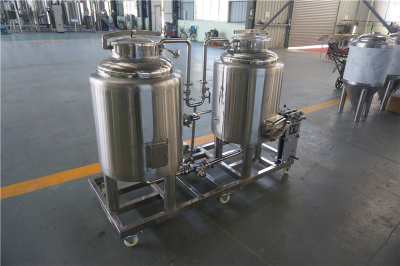

100L Micro Brewery equipment Pub Used Beer Brewing Equipment
What is the details of our 100L brewery equipment?
1Brewhouse Combination Diversification---Customized
2.Decoction,infusion,multi-step infusion mashing can be realized.
3. Electric,Steam,Gas directly fire heating source for optional
4.15 days free installation and training service offered by profession engineer.
5.10 years R&D,Manufacture experience.
6. Mirror polishing and wire drawing SUS 304 for optional,thickness:2-3mm
7.Rational layout, Humanized design and convenient operation
What is the composition of our 100L brewery equipment?
| 100L Beer Brewing System | |||
| Brewing System | Components | Capacity | Specification |
| Grinding System | Miller | 50KG/H | Double Roller,Noise<60db |
| Heating System | Boiler | 10KG/H | Electric,Gas,Oil,Coal Type/CE certification |
| Brewhouse System | Mash/Lauter tun | 100L | Mashing Process:Decoction.Infusion.Multi-step infusion Heating source:Steam,Electric,Gas SUS304/Red copper |
| Brew Kettle/ Whirlpool Tank | 100L | ||
| Hot Water Tank | 200L | ||
| Heat exchanger | 1SQM | Stainless steel plate | |
| Fermentation System | Fermentation Tank | 100L/200L | Top manway/Side manway Drying hop port to brew IPA Dimple Plate Cooling jacket Carbonation port to fill CO2 |
| Yeast Adding Tank | 1L | SUS304 Stainless Steel | |
| Cooling System | Glycol Water tank | 300l | Equiped with PU level indicator |
| Chiller | 1HP | UL/CE certified electric elements,Copeland compressor | |
| Pump | 3T | ||
| Cleaning System | Disinfection Tank | 50L | SUS304 full welded |
| Alkali Tank | 50L | ||
| Pump | 3T | ||
| Control System | Control Cabinet | Manual/PLC/ HMI | Manual/Semi-automatic/Automatic |
| Optional | Auger System | ||
| Grain Case | |||
| Grist Hydrator | |||
| Piping flow panel for Brewhouse | |||
| Brewhouse Separate PLC Controller | |||
| Customized | |||
| Technical Parameter | Power: Voltage:Cusomized Floor space: | ||
Packaging & Shipping
Package
1.LCL/FCL(20GP/40GP/40HQ)
2.Packed with plastic film in fumigation free wooden case or fixed with iron frame
3.Up to export standard, suitable for delivery
4.Customer's requirements available
Company Information
METO’s personal service and support provide an immediate comfort level with our customers. We invite you for a no-obligation tour of our facilities or view our plant tour to see for yourself what makes METO a leader in the craft beer brewing equipment industry!
- Size: 15
- Place of Origin: China
- Brand Name: METO
- Model Number: MT-100
- Weight: 500.000 kg
- :
- :
Name | METO 100L |
Capacity | 100l |
Material | SUS304 or red copper |
Insulation | Polyurethane thickness 100mm |
Heating method | Electric or steam or gas heating |
Certification | CE&ISO |
Power | 30kw adjustable |
Voltage | 230v/380v adjustable |
Warranty | 36 months |
Brewing period | 8-12 days |
Inner surface | S.S.304,welds polishing precision≤0.4µm,THK:2-3mm |
Outside surface | S.S.304,frosted or mirror,THK:1.5-3mm |
Top shape | Dished head or conical head |
Conical degree | 60-90°c |
Manhole location | Side upward/side/flanged |
Insulation | Material:PU,THK:70-100mm |
Cooling jackets | Glycol cooling jackets/dimple jacket at bottom and side wall. |
Spray ball | Located in the center of inside of the tank |
Pressure | 0.4MPa |
Thermometer | PT100 |
Legs | 3/4 round adjustable legs |
Operational method | Semi-Automatic or PLC |
