Product Details
- Place of Origin: China
- Brand Name: METO
- Model Number: MT-500
System I : Brewhosue system
Construction : 2, combinated 3 vessles
Material : SUS304 Stainless Steel , Red copper
Heating : electric , steam (We recommend the steam firstly
System II: Fermenter System
Construction : top manway
Material : SUS304 Stainless Steel , Red copper
With Dimple Plate
System III: Cooling System
Construction : GWT Chiller Water Pump
Material : SUS304 Stainless Steel
- Place of Origin: China
- Brand Name: METO
- Model Number: MT-500
| 500L Pub Beer Brewing Equipment | |||
| Brewing System | Components | Capacity | Specification |
| Grinding System | Miller | 200KG/H | Double Roller,Noise<40db |
| Heating System | Boiler | 50KG/H | Electric,Gas,Oil,Coal Type/CE certification |
| Brewhouse System | Mash/Lauter tun | 500L | Mashing Process:Decoction.Infusion.Multi-step infusion Heating source:Steam,Electric,Gas SUS304/Red copper |
| Brew Kettle/ Whirlpool Tank | 500L | ||
| Hot Water Tank | 800L | ||
| Heat exchanger | 5SQM | Stainless steel plate | |

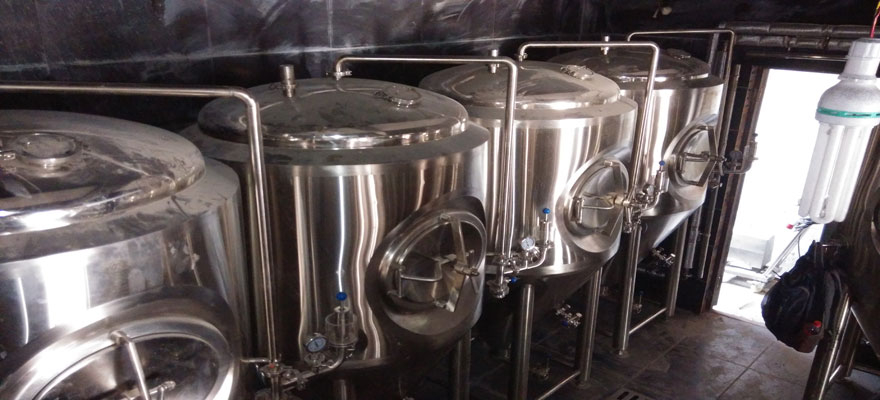

| Fermentation System | Fermentation Tank | 500L/1000L | Top manway/Side manway Drying hop port to brew IPA Dimple Plate Cooling jacket Carbonation port to fill CO2 |
| Yeast Adding Tank | 5L or 10L | SUS304 Stainless Steel | |
| Cooling System | Glycol Water tank | 800L | Equiped with PU level indicator |
| Chiller | 3HP | UL/CE certified electric elements,Copeland compressor | |
| Pump | 3T | ||
| Cleaning System | Disinfection Tank | 50L | SUS304 full welded |
| Alkali Tank | 50L | ||
| Pump | 3T | ||
| Control System | Control Cabinet | Manual/PLC/ HMI | Manual/Semi-automatic/Automatic |
| Optional | Auger System | ||
| Grain Case | |||
| Grist Hydrator | |||
| Piping flow panel for Brewhouse | |||
| Brewhouse Separate PLC Controller | |||
| Customized | |||
| Technical Parameter | Power: Voltage:Cusomized Floor space: | ||
